Core Takeaways
- FTTH production line systems meet growing U.S. demand for fiber-to-the-home deployments.
- Integrated turnkey packages from Shanghai Weiye combine automation, standards compliance, and operator training.
- Modular configurations use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
- Built-in modules cover drawing, coating, coloring, stranding, ribbone, sheathing, armoring, and testing.
- Advanced FTTH cable machinery reduces labor, waste, and improves optical consistency.
- Service coverage includes on-site commissioning, remote diagnostics, and lifetime technical assistance.
Understanding FTTH Cable Line Technology
This fiber optic cable line output process for FTTH requires precise control at every stage. Manufacturers use integrated lines that combine drawing, coating, stranding, and sheathing. That approach boosts yield together with speeds up market entry. It addresses the needs of both residential and enterprise deployments in the United States.
Here, we summarize the core components and technologies driving modern manufacturing. Each module must operate with precise timing and reliable feedback. The choice of equipment influences product quality, cost, and flexibility for various cable designs.
Core Components Of Modern Fiber Optic Cable Manufacturing
Secondary coating lines apply dual-layer coatings, often 250 µm, using fast-cycle UV curing. Tight buffering as well as extrusion systems offer 600–900 µm jackets for indoor and drop cables.

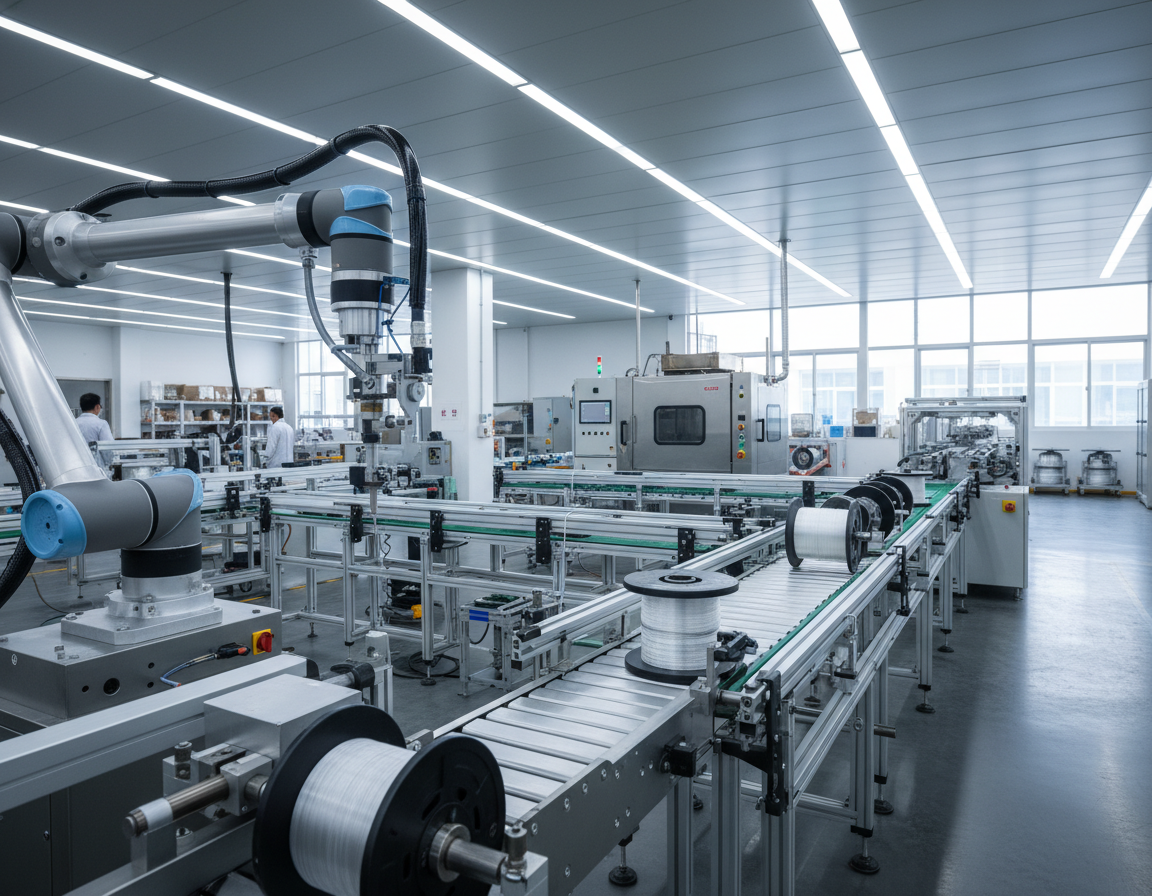

SZ stranding lines employ servo-controlled pay-off and take-up units to handle up to 24 fibers with accurate lay length. Fiber coloring machines use multi-channel UV curing to mark fibers to industry color codes.
Sheathing and extrusion stations form PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs and UV dryers stabilize profiles before testing.
How Production Systems Evolved From Traditional To Advanced
Early plants used manual as well as semi-automatic modules. Lines were separate, featuring hand transfers together with basic controls. Current facilities now employ PLC-controlled, synchronized systems featuring touchscreen HMIs.
Remote diagnostics and modular turnkey setups allow rapid changeover between simplex, duplex, ribbon, and armored formats. That transition supports automated fiber optic cable production together with reduces labor dependence.
Technologies Driving Innovation In The Industry
High-precision tension control, based on servo pay-off and take-up, keeps geometry stable during high-speed runs. Multi-zone temperature control using Omron PID and precision heaters ensures consistent extrusion quality.
High-speed UV curing and water cooling accelerate profile stabilization while reducing energy use. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, and aging data.
| Operation | Typical Equipment | Key Benefit |
|---|---|---|
| Fiber drawing | Draw tower with automated tension feedback | Consistent core diameter and low attenuation |
| Fiber secondary coating | UV-curing dual-layer coaters | Uniform 250 µm coating for durability |
| Fiber coloring | Multi-channel fiber coloring machine | Reliable color identification for field work |
| Fiber stranding | Servo-controlled SZ stranding line (up to 24 fibers) | Consistent lay length for ribbon and loose tube designs |
| Sheathing & extrusion | Energy-saving extruders with multi-zone heaters | Precise jacket dimensions in PE, PVC, or LSZH |
| Cable armoring | Steel tape/wire armoring units | Improved outdoor mechanical protection |
| Cooling & curing | Water troughs and UV dryers | Quicker profile setting with fewer defects |
| Testing | Inline geometry and attenuation measurement | Real-time quality control and compliance reporting |
Compliance with IEC 60794 and ITU-T G.652D/G.657 variants is standard. Manufacturers typically certify to ISO 9001, CE, and RoHS. These credentials help support diverse applications, from FTTH drop cable production to armored outdoor runs and data center high-density solutions.
Choosing cutting-edge fiber optic production equipment and modern manufacturing equipment enables firms meet tight tolerances. That decision enables efficient automated fiber optic cable production and positions companies to deliver on scale and quality.
Essential Equipment In Fiber Secondary Coating Line Operations
The secondary coating stage is critical, giving drawn optical fiber its final diameter and mechanical strength. It prepares the fiber for stranding and cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, and surface quality. This protects the glass during handling.
Producers aiming for high-yield, high-speed fiber optic cable production must match material, tension, together with curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, as well as UV ovens. Advanced systems achieve high line output rates while minimizing excess loss. Precise tension control at pay-off and winder stages prevents microbends and supports consistent coating thickness across long runs.
Single and dual layer coating applications serve different market needs. Single-layer setups provide basic mechanical protection as well as a simple optical fiber cable manufacturing machine footprint. Dual-layer lines combine a harder inner layer with a softer outer layer to improve microbend resistance as well as stripability. That is useful when fibers are prepared for connectorization.
Temperature control and curing systems are critical to final fiber performance. Multi-zone heaters and Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens and water trough cooling stabilize the coating profile and reduce variation in excess loss; targets for high-quality single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime as well as precision in an optical fiber cable line output machine. Extruders such as 50×25 models, screws together with barrels from Jinhu, as well as bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, as well as PLC/HMI platforms from Siemens or Omron provide robust control together with monitoring for continuous runs.
Operational parameters support preventive maintenance together with process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation together with curing speeds are adjusted to material type together with coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable together with supports reliable fast-cycle fiber optic cable production.
Fiber Draw Tower And Optical Preform Processing
The fiber draw tower is the core of optical fiber drawing. It softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand with precise diameter control. This step sets the refractive-index profile and attenuation targets for downstream processes.
Process control on the tower uses real-time diameter feedback and tension management. That prevents microbends. Cooling zones and closed-loop systems keep geometry stable during the optical fiber cable production process. Modern towers log metrics for traceability and rapid troubleshooting.
Output quality supports single-mode fibers such as ITU-T G.652D and bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration with secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment and tension as the fiber enters coating, coloring, or ribbon count stations. This transfer step ensures the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, and geometric tolerances. These integrated features help manufacturers scale toward high-speed fiber optic cable production while maintaining ISO-level quality checks.
| System Feature | Function | Typical Target |
|---|---|---|
| Multi-zone heating furnace | Uniform preform heating for stable glass viscosity | Consistent draw speed and refractive profile |
| Real-time diameter control | Maintain core/cladding geometry and reduce attenuation | Tolerance ±0.5 μm |
| Tension and cooling management | Prevent microbends and control fiber strength | Defined tension by fiber type |
| Automatic pay-off integration | Smooth transfer to coating and coloring | Synced feed rates for zero-slip transfer |
| Integrated online testing stations | Validate attenuation, tensile strength, geometry | ≤0.2 dB/km loss after coating for single-mode |
Advanced SZ Stranding Technology For Cable Assembly
The SZ stranding method creates alternating-direction lays that cut axial stiffness and boost flexibility. This makes it ideal for drop cables, building drop assemblies, and any application that needs a flexible core. Manufacturers moving toward automated fiber optic cable manufacturing use SZ approaches to meet tight bend and axial tolerance specs.
Precision in the stranding stage protects optical performance. Modern precision stranding equipment uses servo-driven carriers, rotors, and modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control and allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, together with haul-off units maintain constant linear speed as well as target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 as well as 20 N.
Integration using a downstream fiber cable sheathing line streamlines manufacturing together with lowers handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs using stranding through a Siemens PLC. Cooling troughs and UV dryers stabilize the jacket profile right after extrusion to prevent ovality as well as reduce mechanical stress.
Optional reinforcement together with armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire using adjustable tension to meet specific mechanical ratings.
Built-in output quality control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, as well as optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows and cut rework.
This combination of a robust sz stranding line, high-end precision stranding equipment, and a synchronized fiber cable sheathing line provides a scalable solution for manufacturers. This blend raises throughput while protecting optical integrity and mechanical performance in finished cables.
Fiber Coloring And Identification System Technology
Coloring as well as identification are critical in fiber optic cable production. Accurate color application minimizes splicing errors together with accelerates field work. Current equipment combines fast coloring with inline inspection, ensuring high throughput and low defect rates.
Today’s high-speed coloring technology supports multiple channels and quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning with secondary coating lines. UV curing at speeds over 1500 m/min ensures color and adhesion stability for both ribbon and counted fibers.
This next sections review standards as well as coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles as well as ribbon schemes. That consistency aids technicians in installation as well as troubleshooting. Consistent coding significantly lowers field faults together with accelerates network deployment.
Quality control integrates advanced fiber identification systems into production lines. In-line cameras, spectrometers, and sensors detect color discrepancies, poor saturation, and coating flaws. The PLC/HMI interface alerts to issues and can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs and material compatibility. Leading equipment accepts UV-curable pigments together with inks, compatible using common coatings together with extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye as well as other established vendors offer customizable channels, remote diagnostics, and onsite training. Such supplier support cuts ramp-up time as well as enhances the reliability of fiber optic cable line output equipment.
Specialized Solutions For Fiber In Metal Tube Production
Metal tube and metal-armored cable assemblies provide robust protection for fiber lines. They are ideal for direct-buried and industrial applications. The controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling and centering units. These modules, in conjunction with fiber optic cable manufacturing equipment, ensure concentric placement and controlled tension during insertion.
Armoring steps involve the use of steel tape or wire units with adjustable tension and wrapping geometry. This process benefits armored fiber cable production by preventing compression of fiber elements. It also keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring with downstream sheathing and extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable production machine must handle pay-off reels sized for reinforcement and align with sheathing tolerances.
Quality checks include crush, tensile, and aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing ensures long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling with SZ stranding and sheathing lines. These solutions include operator training and maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility with armored fiber cable line output modules, ease of changeover, together with service support for field upgrades. Such considerations reduce downtime and protect investment in an optical fiber cable line output machine.
Fiber Ribbon And Compact Fiber Unit Manufacturing
Modern data networks require efficient assemblies that pack more fibers into less space. Cable makers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. This method employs parallel processes as well as precise geometry to meet the needs of MPO trunking as well as backbone cabling.
Advanced equipment ensures accuracy and speed in production. A fiber ribbon line typically integrates automated alignment, epoxy bonding, precise curing, and shear/stacking modules. In-line attenuation and geometry testing reduce rework, maintaining high yields.
Compact fiber unit manufacturing focuses on tight tolerances as well as material choice. Extrusion together with buffering create compact fiber unit constructions with typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, and LSZH for durability together with flame performance.
High-density cable solutions aim to enhance rack as well as tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter as well as simplify routing. They are compatible featuring MPO trunking as well as high-count backbone systems.
Production controls and speeds are critical for throughput. Modern lines can reach up to 800 m/min, depending on configuration. PLC and HMI touch-screen control enable quick parameter changes and synchronization across multiple lines.
Quality and customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, and turnkey integration with sheathing and testing stations support bespoke high-speed fiber cable production line requirements.
| Feature | Fiber Ribbon Line | Compact Unit | Data Center Benefit |
|---|---|---|---|
| Line speed | Up to roughly 800 m/min | Around 600–800 m/min | More output for large deployment projects |
| Core processes | Alignment automation, epoxy bonding, and curing | Extrusion, buffering, and tight-tolerance winding | Stable geometry and reduced insertion loss |
| Primary materials | Specialty tapes and bonding resins | PBT, PP, plus LSZH buffer and jacket materials | Durable performance and safety compliance |
| Inspection | Inline attenuation and geometry checks | Precision dimensional control with tension monitoring | Reduced field failures and faster deployment |
| System integration | Sheathing integration and splice-ready stacking | Modular units supporting high-density cable designs | Streamlined MPO trunking and backbone builds |
Optimizing High-Speed Internet Cables Production
Efficient high-speed fiber optic cable production relies on precise line setup and strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, and tension systems. That ensures optimal output for flat, round, simplex, and duplex FTTH profiles.
Cabling Systems Used In FTTH Applications
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- and 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 and 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Quality Assurance In The Fiber Pulling Process
Servo-controlled pay-off and take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, and crush and aging cycles. Such tests verify performance.
Key control components include Siemens PLCs and Omron PID controllers. Motors from Dongguan Motor and inverters from Shenzhen Inovance ensure stable operation and easier maintenance.
Meeting Optical Fiber Drawing Industry Standards
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D as well as G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-output quality single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, as well as local after-sales support. Top FTTH cable manufacturing line manufacturers deliver turnkey layouts, remote monitoring, as well as operator training. That cuts ramp-up time for US customers.
Closing Summary
Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, and ribbon units. It also includes sheathing, armoring, and automated testing for consistent high-speed fiber production. A complete fiber optic cable production line is designed for FTTH and data center markets. It enhances throughput, keeps losses low, and maintains tight tolerances.
For United States manufacturers as well as system integrators, partnering with reputable suppliers is key. They should offer turnkey systems using Siemens or Omron-based controls. This incorporates on-site commissioning, remote diagnostics, together with lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co offer integrated solutions. These integrated packages simplify automated fiber optic cable manufacturing and reduce time to line output.
Technically, ensure line configurations adhere to IEC 60794 and ITU-T G.652D/G.657 standards. Verify tension and curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable production line, first evaluate required cable types. Collect product drawings and standards, request detailed equipment specs and turnkey proposals, and schedule engineer commissioning and operator training.
